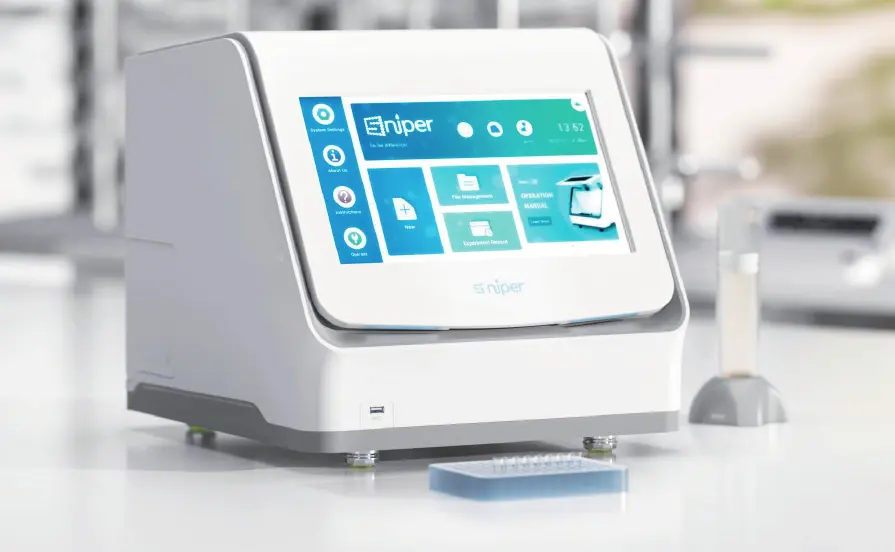

DQ24 Plus
Specifications
Dimensions (LxWxH) | 495mmx560mmx520mm |
Weight | 60kg |
Working environment | Temperature 10-30ºC, Humidity ≤ 80% |
Power input | 100-240V, AC 50/60Hz, 7.3A |
Contamination control | FFU with HEPA filter, UV Lamp |

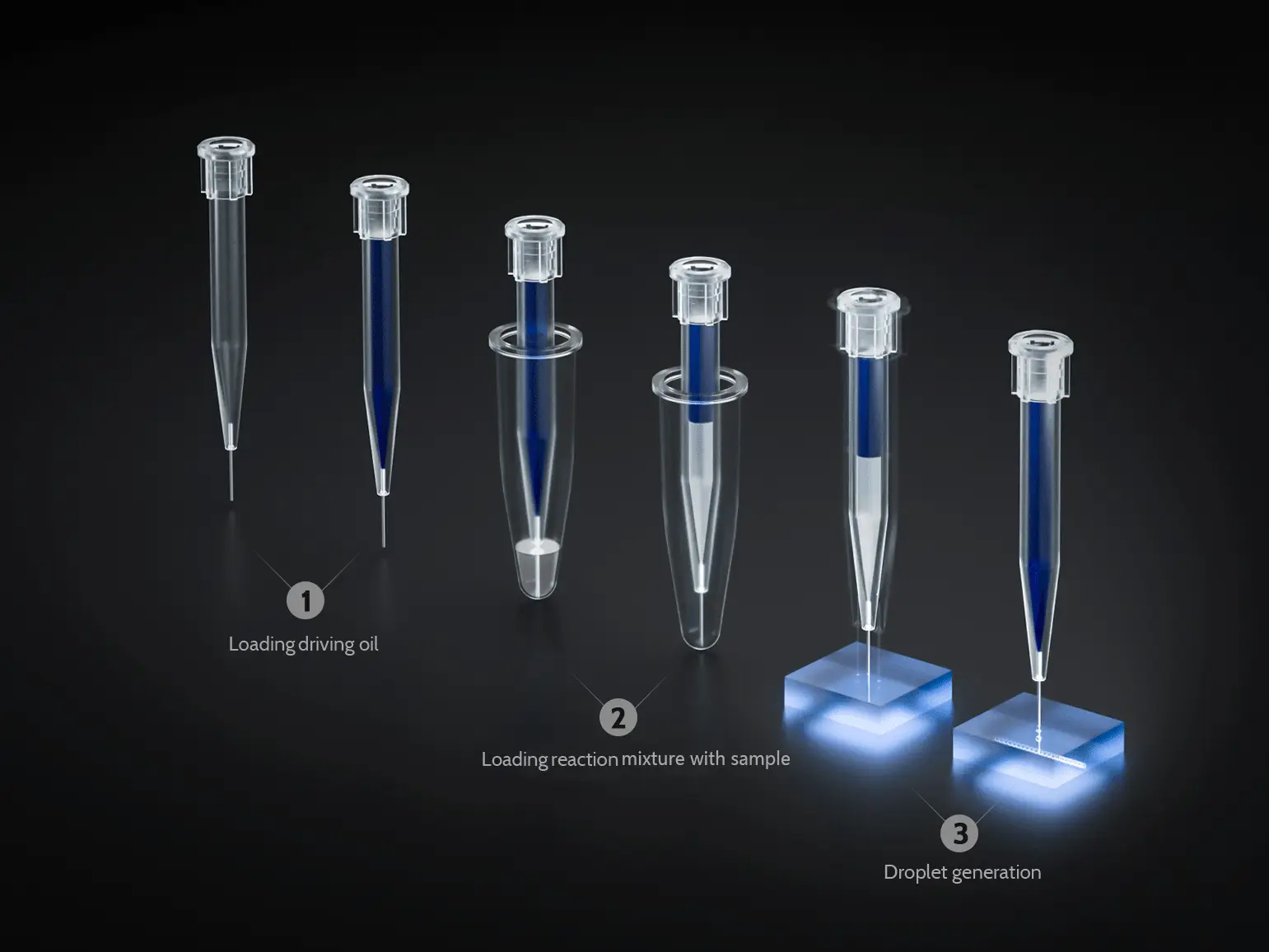

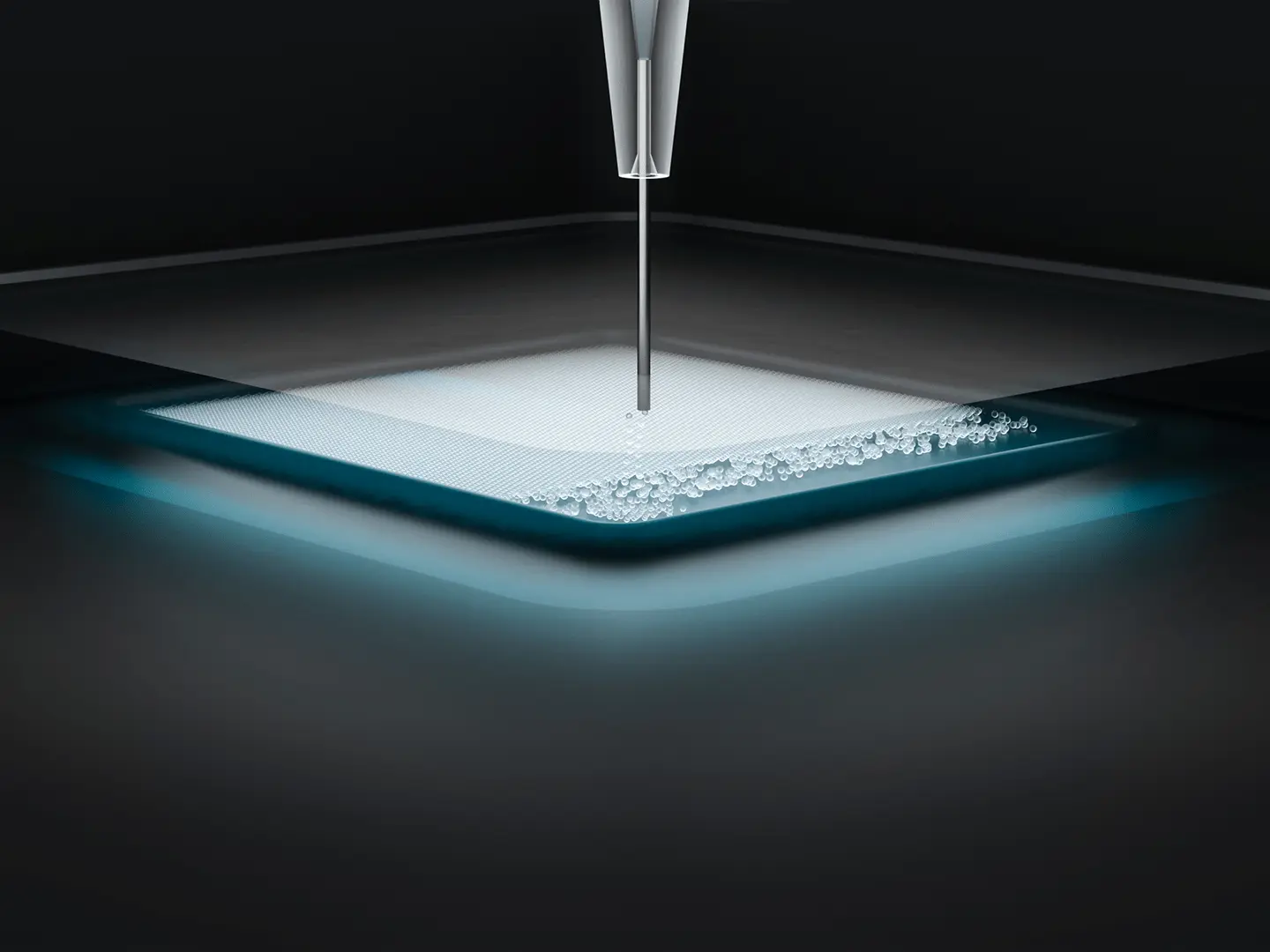

Droplet generation technology | VibroJet™ |

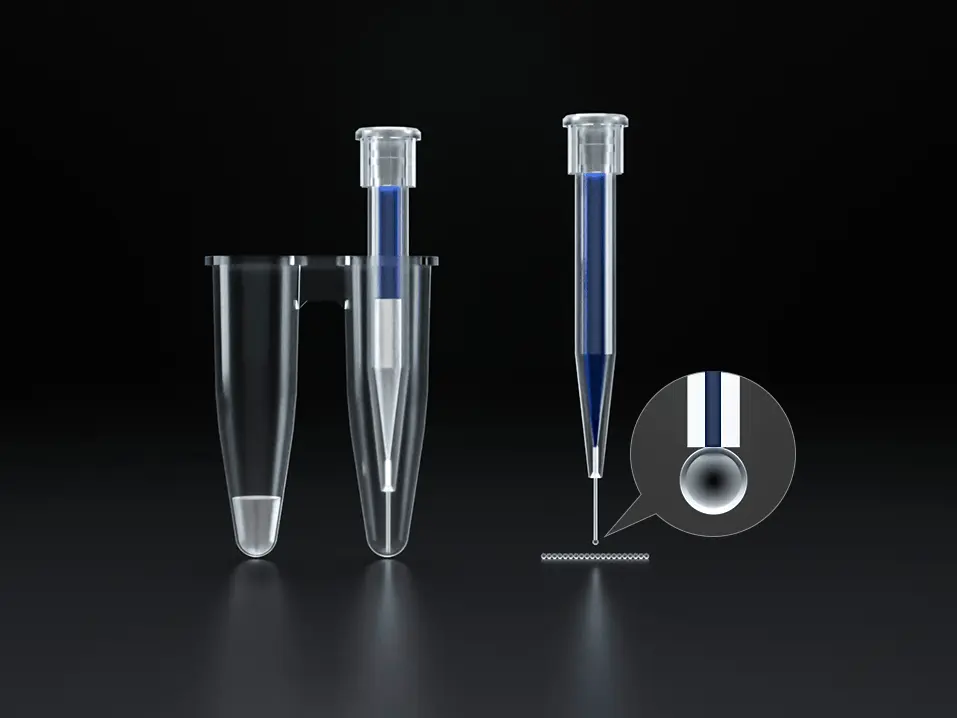

Starting sample size | 20-22µL |
Throughput | 1-24 samples per run |
Droplet per 20µL | Up to 23,000 partitions |
Fluorescent chemistry | Intercalating dye / Probe |

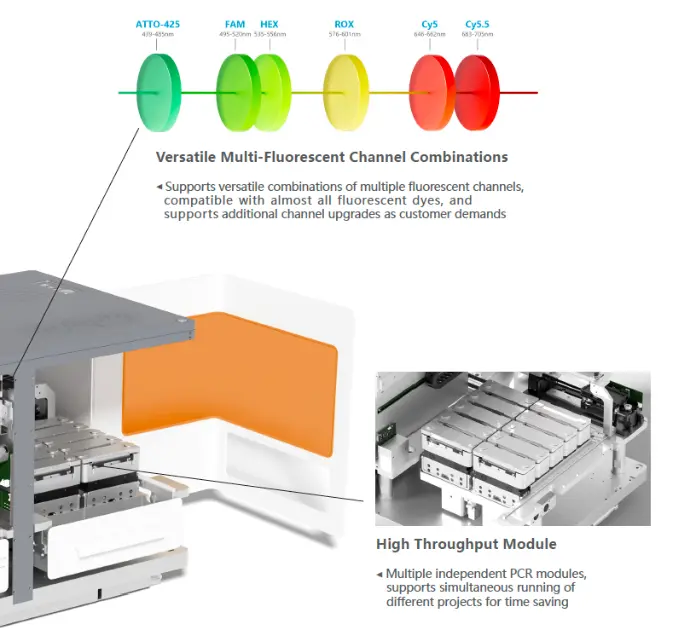

Detection channels | Atto425, FAM/EvaGreen, HEX/VIC/JOE, ROX/TexasRed, Cy5/Q670, Quasar705/Cy5.5 |
Sample illumination | LED |
Dynamic range | 5 orders of magnitude |
Temperature ramping | > 3.5ºC/s |
Heating block | 3 x individual heating block to support up to 3 x PCR profiles per run |
Precision | ± 10% |
Touch screen | 17.3' LCD |
Temperature range | 3-99ºC |
Thermal accuracy | ± 0.5ºC |
Software | Sight Pro, Compliant with 21CFR Part11 |
Data export format | .png / .pdf / .csv |
Data quality control | QC image, review droplets to avoid false positives |

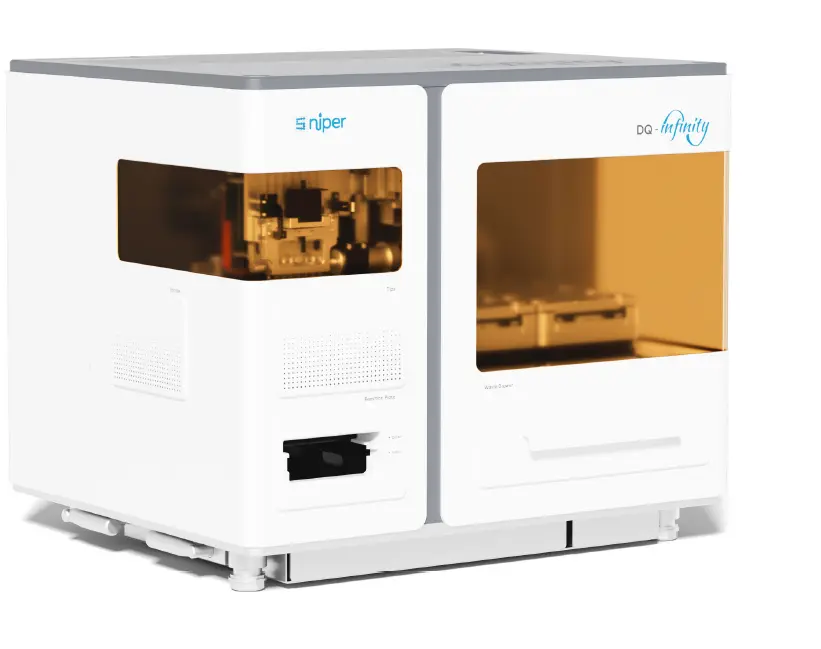

DQ-Infinity
Specifications
Dimensions (LxWxH) | 620mmx530mmx460mm |
Weight | 80kg |
Working environment | Temperature 10-30ºC, Humidity ≤ 80% |
Power input | 100-240V, AC 50/60Hz, 7.3A |
Contamination control | FFU with HEPA filter, UV Lamp |
Droplet generation technology | VibroJet™ |
Starting sample size | 20-22µL |
Throughput | 1-96 samples per run |
Droplet per 20µL | Up to 23,000 partitions |
Fluorescent chemistry | Intercalating dye / Probe |
Detection channels | Atto425, FAM/EvaGreen, HEX/VIC/JOE, ROX/TexasRed, Cy5/Q670, Quasar705/Cy5.5 |
Sample illumination | LED |
Dynamic range | 5 orders of magnitude |
Temperature ramping | > 3.5ºC/s |
Heating block | 10 x individual heating block to support up to 12 x PCR profiles per run |
Precision | ± 10% |
Temperature range | 3-99ºC |
Thermal accuracy | ± 0.5ºC |
Software | Sight Pro, compliant with 21CFR Part11, LIS system compatible |
Data export format | .png / .pdf / .csv |
Data quality control | QC image, review droplets to avoid false positives |
